Busbar Systems

Busbar systems for individual switchgear and controlgear

  • RiLine Compact up to 125 A
  • Mini-PLS up to 250 A
  • RiLine PLS/Flat copper busbars up to 800/1600 A
  • Ri4Power 185 mm system up to 2100 A
  • Flat copper busbars up to 6300 A
Ri4Power

VX25 Ri4Power

  • The tested complete solution – Enclosure and bar system
  • Modular system for low-voltage switchgear
  • Design verification to IEC/DIN 61 439, tested and documented
  • Fast configuration and selection assisted by the Power Engineering planning software
  • Technical support from Rittal
  • Significantly reduced planning, ordering and assembly times
  • Licence-free modular system
  • Standardised system solutions
System windows

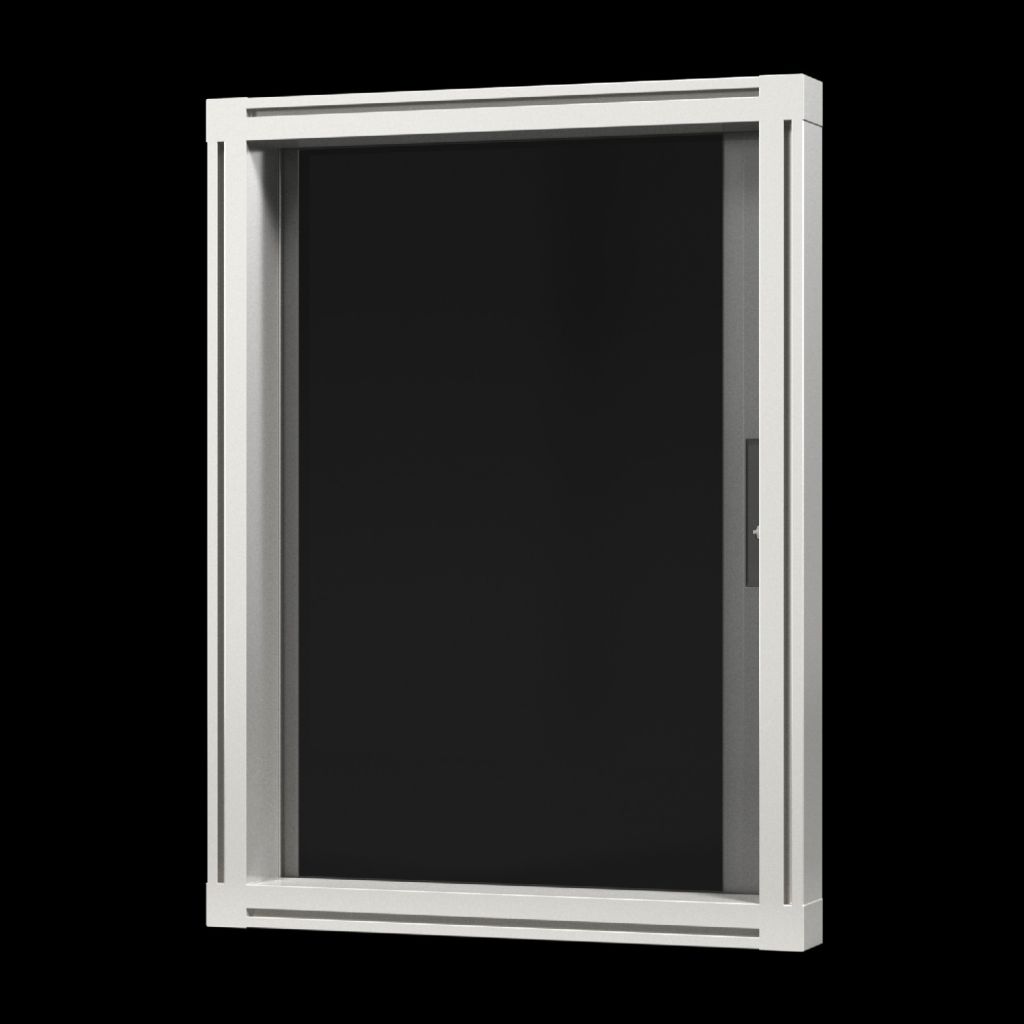

System windows

  • Rittal system windows for individual use
  • To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access
  • Frame section height 30 mm or 60 mm
Bayed enclosure system VX25

Distribution enclosure ISV

  • Rittal VX25 as a distribution enclosure in the substation sector
  • The enclosures are equipped with contact hazard protection frames and prepared on-site for ISV installation modules
  • Fast, ergonomic installation
  • Systematic assembly of distributors
Bus-mounting fuse base

Bus-mounting fuse base

  • Innovative fuse elements for IEC or UL applications up to 630 A
  • Bus-mounting fuse base, 3-pole, for D02-E18, DII-E27 and DIII-E33 fuse technology
  • NH fuse-switch disconnectors, size 00 to 3, free choice of cable outlet (top/bottom) by simply rotating the mounting feet
  • NH slimline fuse-switch disconnectors, size 00, for 60 and 100 mm bar centre distance
RDC IT Container

RiMatrix Data Center – RDC IT container

Complete, ready-to-connect solution

RiMatrix Data Centre Container RDC

  • Individual container solutions
  • Various data centre container variants with different cooling concepts
  • Components from the Rittal RiMatrix portfolio
  • Short planning phases and delivery times
  • Complete turnkey system
  • Adapted to individual requirements
